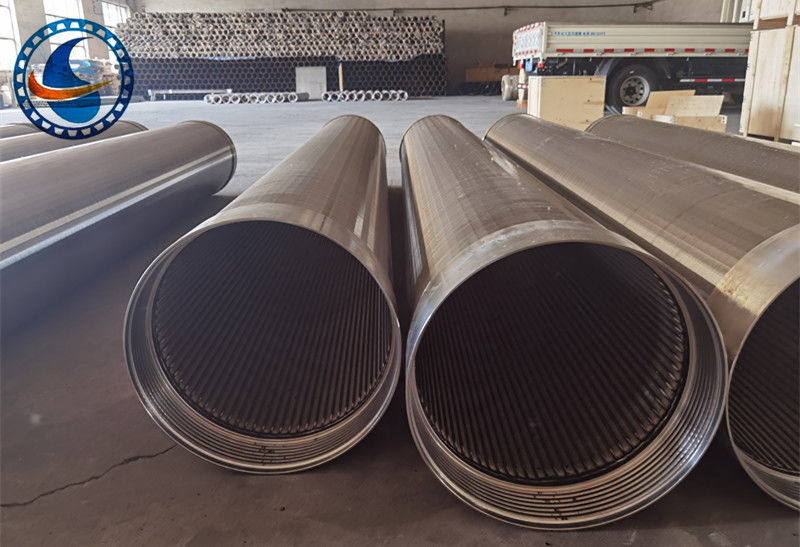

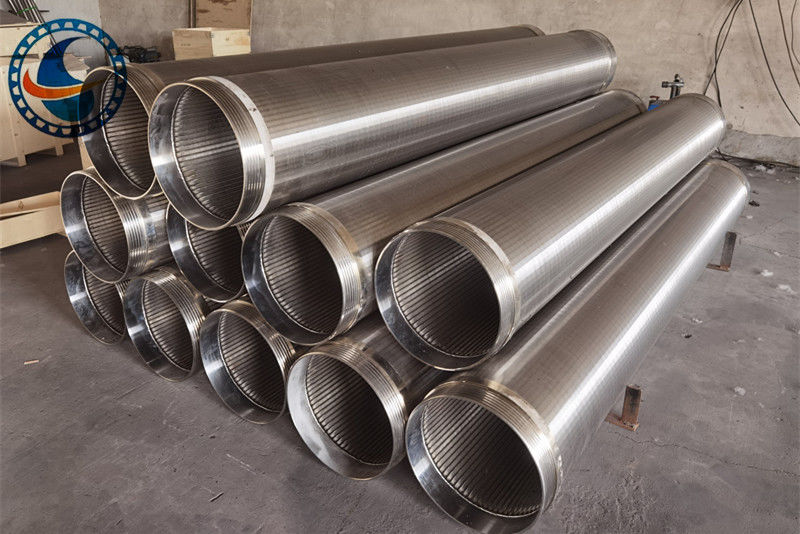

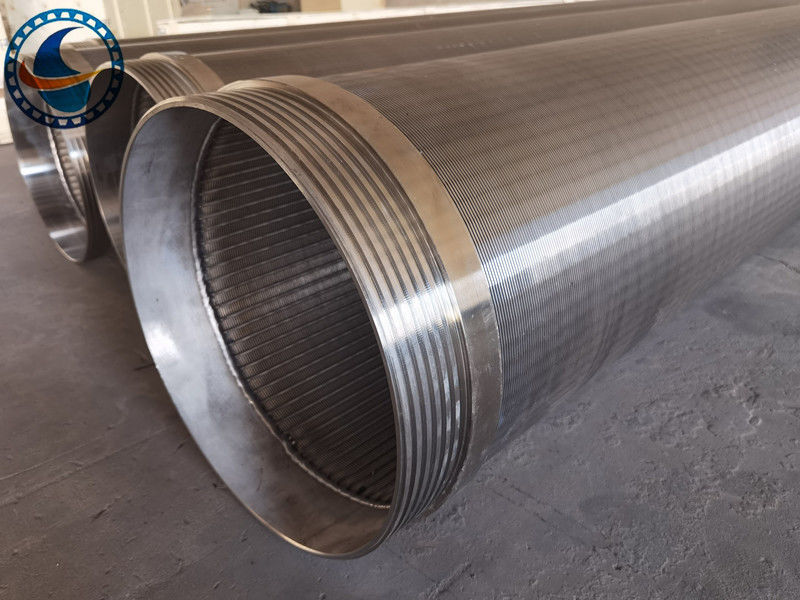

Name: SS304L 12-3/4" Slot 40 Water Well Screen For Irrigation
Brand: Anping County Hengyuan Hardware Netting Industry Product Co.,Ltd.
SKU: 12-3/4"
Price: 200.00 USD
Availability: InStock

صفحه اصلی > محصولات > صفحه نمایش چاه آب >

SS304L 12-3/4" Slot 40 Water Well Screen For Irrigation

Water Well Screen Slot 40,Irrigation Water Well Screen,SS304L Water Well Screen

Irrigation Water Well Screen

SS304L Water Well Screen

محل منبع:

هنگشوی، هبی، چین

نام تجاری:

Heng Yuan

گواهی:

ISO9000

شماره مدل:

12-3/4"

با ما تماس بگیرید

درخواست نقل قول

جزئیات محصول

نام:

صفحه نمایش چاه آب

مواد:

فولاد ضد زنگ 304 لیتر

قطر:

325 میلی متر

طول:

3000 میلی متر

اندازه اسلات:

1.0 میلی متر

سیم بپیچید:

3.0×4.6 میلی متر

میله پشتیبانی:

ø4.0 میلی متر

نه از میله:

55 NOS

پایان اتصال:

API STC موضوع

وزن:

145 کیلوگرم / قطعه

بسته بندی:

فیلم پلاستیکی

استفاده:

در چاه های آب برای کنترل شن و ماسه

محصولات مرتبط

ویدئو

SS304L 12-3/4" Slot 40 Water Well Screen For Irrigation

بهترین قیمت را دریافت کنید

ویدئو

Stainless Steel 304L Rod Based Continuous Slot Wedge Wire Screen

بهترین قیمت را دریافت کنید

ویدئو

SS304 Vee Wire Water Well Screen Non Clogging Long Lasting Performance

بهترین قیمت را دریافت کنید

ویدئو

کم کربن گالوانیزه آب خوب صفحه نمایش مقاومت فشار عالی تامین کنندگان

بهترین قیمت را دریافت کنید

با ما تماس بگیرید

86-318-7565918

hengyuan1@aphywire.com

86-318-7565919

اکنون تماس بگیرید

توضیحات محصول

12-3/4" Slot 40 Water Wire Screen For Irrigation

Commonly referred to as continuous slot or wire wrap screen, continuous slot water well screen was originally developed to overcome problems associated with cable tool wells drilled in fine grained, uniform sands in the North Central United States.

These wells were typically completed in relatively shallow, thin aquifers that were very prolific in terms of water production.

Continuous wire wrap screen are very effective in wells of this type since they can be manufactured with very small slot size and yet still maintain the necessary open area to minimize frictional head loss.

Water Well Screen Regular Specifications:

Name:Continuous Slot Rod Based Water Well Screen,Oil Well Sand Screen,Water Well Screen, Wedge wire screen,Screen tube,Wound screen,Sand control screen, Wedge wire screen pipe, Rotary filter drum,Oil screen.
Material: Stainless steel 202,304,304L,316L,Non-magnetic Stainless steel,Low carbon galvanized etc.
Diameter: 3", 4", 6", 8", 10", 12", 14", 16", 18" etc.
Slot: From 0.1-100mm (Normal slot 0.5mm, 0.63mm, 0.75mm, 1.0mm, 1.5mm, Pls refer to below table)
Length: From 100-6000mm (Normal length is 2.9m/3m and 5.8m/6m, to fit container)
Wrap wire:23.5mm,2.23.5mm,34.6mm,35mm,36mm,36.5mm,3.26mm,47mm etc.

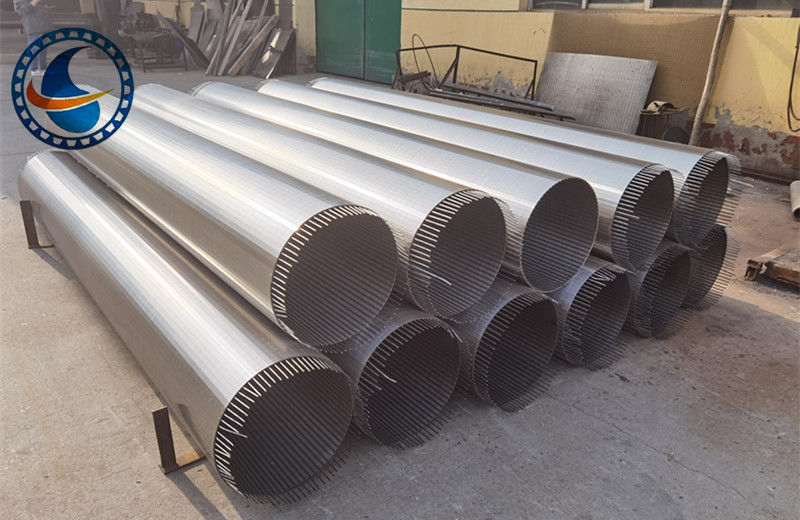

Support rod:ø3.0-ø6.0mm round wire, Also can be Vee-shaped wire.
Ends:Welded rings/Plain beveled ends,Male/female threaded,Flange etc.
Use:Water Well,Oil Wells,Waste Water Treatment,Water supply systems,Coal & Mine, Food Processors & Beverage Screens,Environmental protection,Refining & Petrochemical,Architecture & Construction etc.
Sizes (inch)	OD (mm)	Slot (mm)	Length (m)	Tenslie Strength	Collapse Strength	Wrap wire Vee-shaped wire(mm)	Support rod Round wire(mm)
3-1/2	88.9	1.0	2.9	＞22	10.2	2.03.5(Widthheight)	ø3.8MM×22
4-1/2	114.3	1.0	2.9	＞28	11.5	2.03.5(Widthheight)	ø3.8MM×22
6-5/8	168.3	0.75	5.8	＞40	12.8	2.03.5(Widthheight)	ø3.8MM×32
6-5/8	168.3	1.0	5.8	＞33	12.8	2.23.5(Widthheight)	ø3.8MM×32
6-5/8	168.3	0.63	5.8	＞83	45	3.06.0(Widthheight)	ø6.0MM×32
8-5/8	219.1	1.0	5.8	＞34	21.9	2.23.5(Widthheight)	ø3.8MM×48
8-5/8	219.1	1.0	5.8	＞50	38.2	3.04.6(Widthheight)	ø4.0MM×48
8-5/8	219.1	1.0	5.8	＞60	46	3.06.0(Widthheight)	ø5.0MM×48
10-3/4	273.1	0.75	5.8	＞50	32.9	2.23.5(Widthheight)	ø4.0MM×55
10-3/4	273.1	1.0	5.8	＞60	39.5	3.04.6(Widthheight)	ø4.8MM×55
10-3/4	273.1	1.0	5.8	＞100	48	3.26.0(Widthheight)	ø5.0MM×55
12-3/4	323.9	1.0	5.8	＞120	37.2	3.05.0(Widthheight)	ø4.0MM×56
14	355.6	1.0	2.9	＞80	37.8	3.05.5(Widthheight)	ø4.0MM×59
16	426	1.0	2.9	＞80	37.5	3.05.5(Widthheight)	ø4.0MM×64

Special specification can be made according to your need !

Water Well Screen Use:

Water Well,

Food &Beverage Screens,

Pharmaceutical & Biological industries,

Refining & Petrochemical,

Water Treatment & Liquid / Solids Separation,

Mineral & Aggregate Processing,

Pulp & Paper Screens.
